Learjet 45 Panel

Full Flight Gauges Common Features

All the Full Flight Gauges share some common features described here.

Popup the EFIS

Each EFIS (PFD, ND or EICAS) can be poped up as an independent window that can be resized, undocked or detached on a second monitor if you have one.
To popup a display, move the mouse to the central area of the display (the mouse cursor changes to a hand cursor) and left-click.

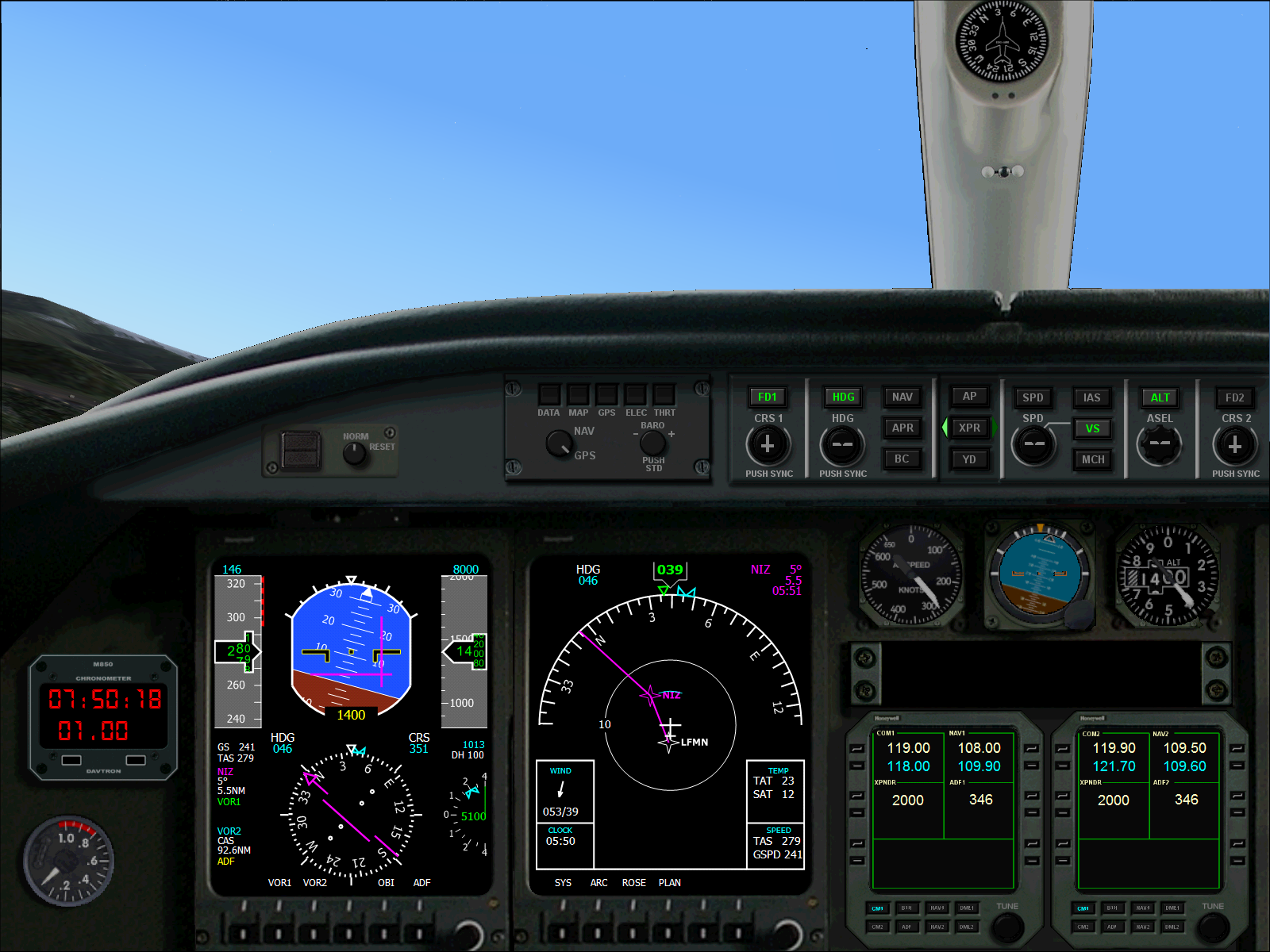

Normal display, the the PFD and the EICAS
(click to enlarge)

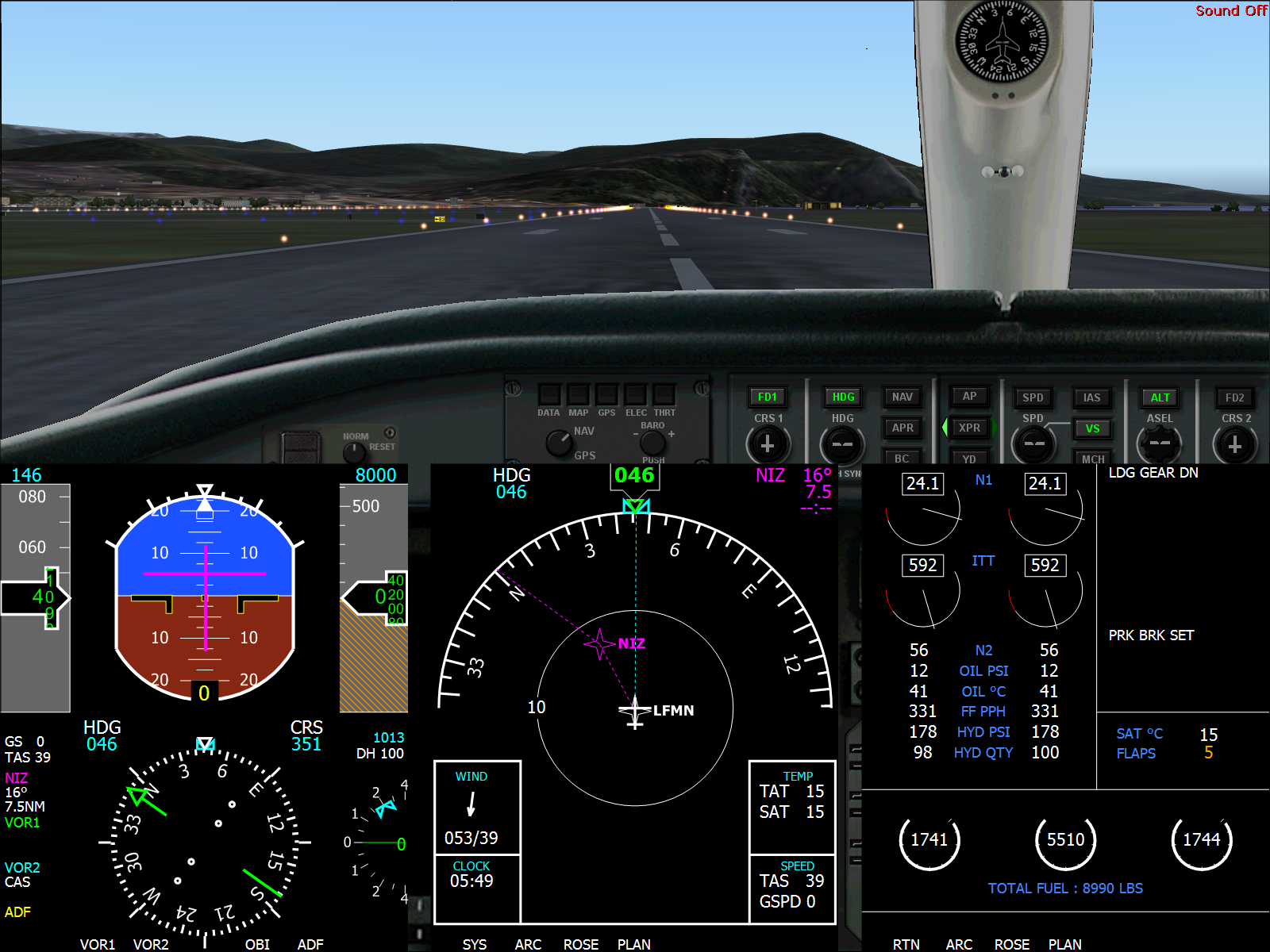

The PFD, ND and EICAS have been popped up
(click to enlarge)

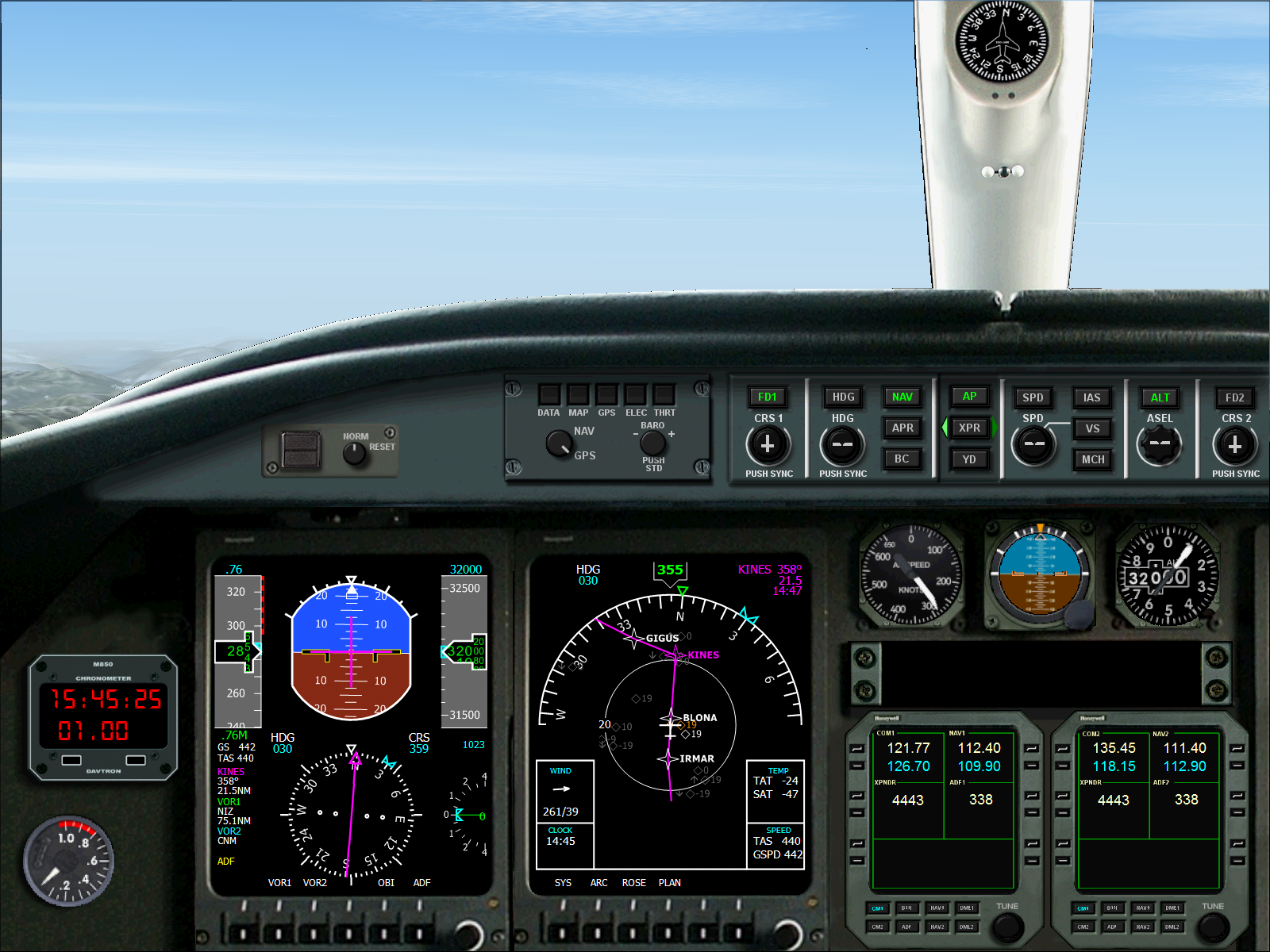

ND showing a crowded sky situtation with the TCAS
(click to enlarge)

Brightness

Move the mouse to the central area of the display (the mouse cursor changes to a hand cursor) and roll the mouse wheel.
This increases/decreases the EFIS brightness.

Flight Plan

The Navigation Display handles the flight plan of the Flight Simulator GPS system.
You just have to create or load a flight plan in the FS flight planner and it is displayed on the ND.

TCAS

The Navigation Display is linked to the TCAS to display the aircrafts around your position, within +/-2000 feet above and below your current altitude. The color of the TCAS contacts depend on their distance to your aircraft:
  • Grey: far enough, not a real danger
  • White: close enough to become a danger
  • Amber: very close and dangerous, think about an avoidance maneuver

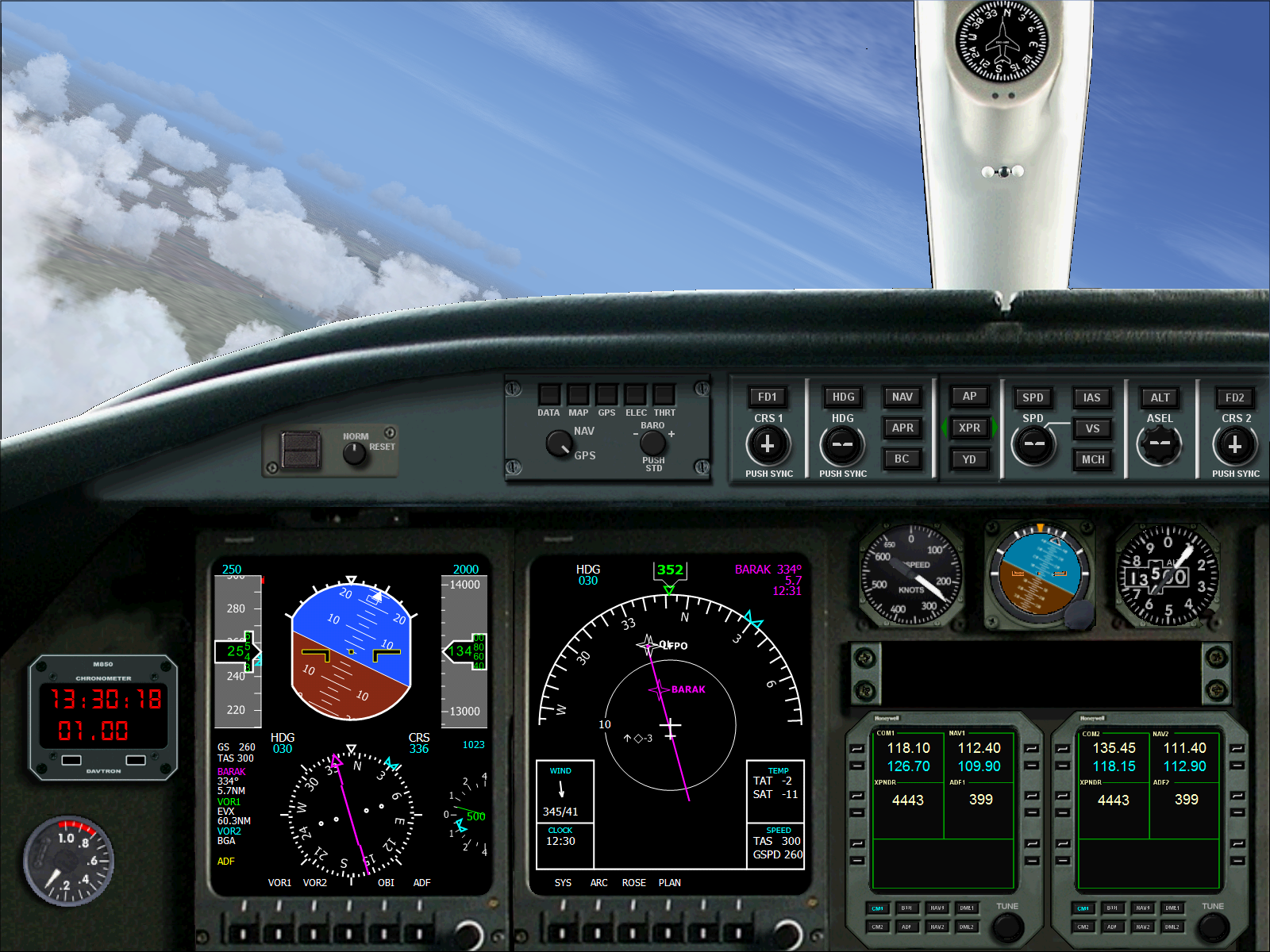

ND Flight Plan
The flight plan appears on the ND, drawn
in full line when the GPS mode is active.
Note the blue altitude arc, whcih shows the distance at which the target altitude will be reached.
(click to enlarge)

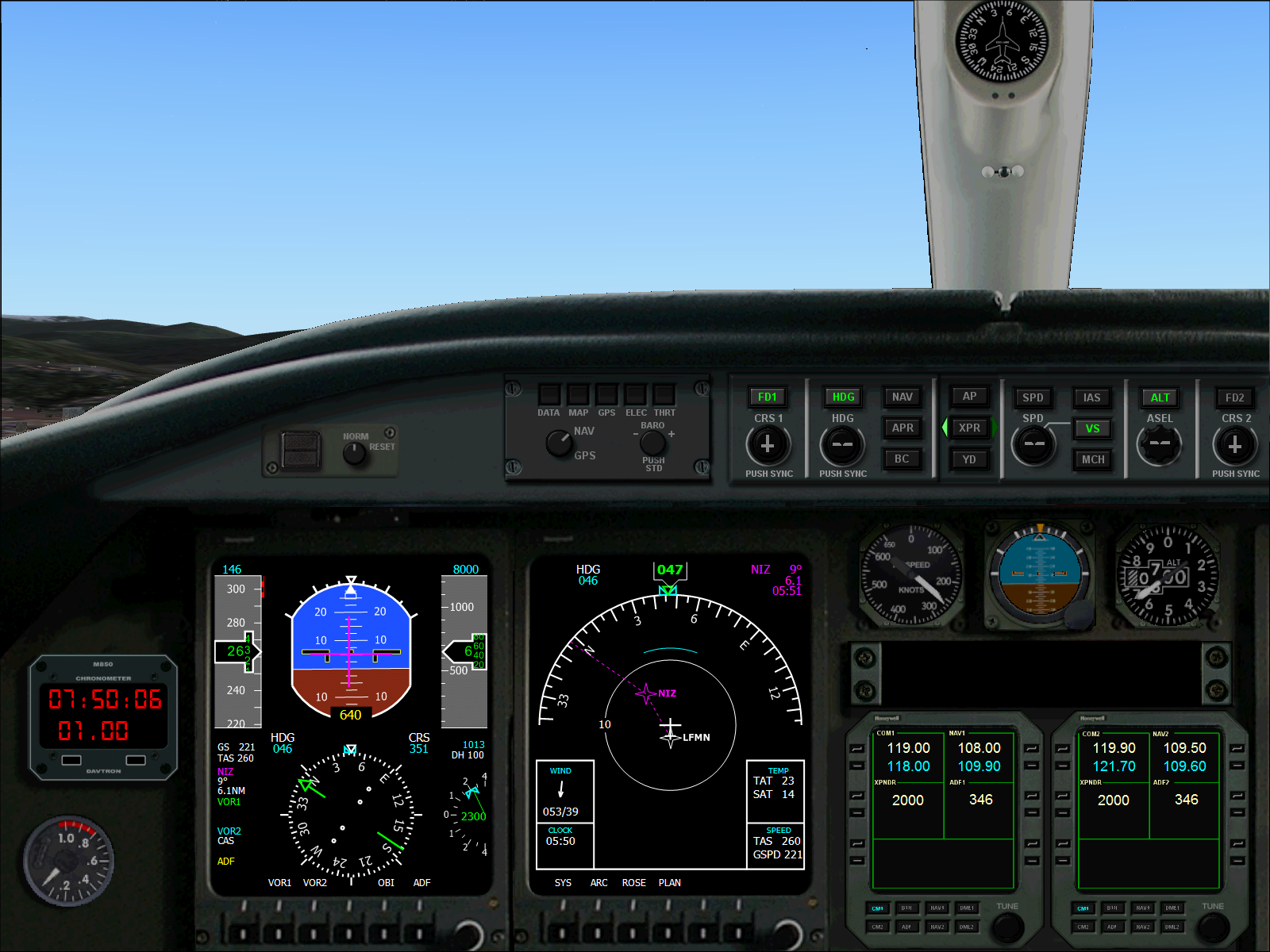

ND TCAS
The TCAS shows another aircraft,
300 feet below your altitude, climbing.
(click to enlarge)

Learjet Panel Specific Features

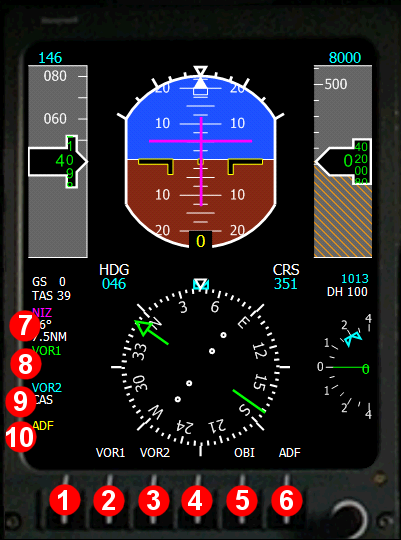

The left EFIS shows the Primary Flight Display

1 - Switch for the altitude barometric mode: In Hg or Mb
2 - Switch the visibility of the green VOR1 needle on the PFD and the ND
3 - Switch the visibility of the blue VOR2 needle on the PFD and the ND
4 - Unused
5 - Switch the visibility of the green OBI needle on the PFD
6 - Switch the visibility of the yellow ADF needle on the PFD and the ND
7 - Next waypoint information
  • Name
  • Distance
8 - VOR1 station information
  • Name
  • Distance

9 - VOR2 station information
  • Name
  • Distance
10 - ADF station information
  • Name
  • Bearing
The right EFIS can display the EICAS or the ND

1 - Switch display mode
  • SYS to switch to EICAS mode
  • RTN to return to ND mode
2 - Set the ND to ARC mode
3 - Set the ND to ROSE mode
4 - Set the ND to PLAN mode
5 - When the ND is in PLAN mode, center the plan on the previous waypoint
6 - When the ND is in PLAN mode, center the plan on the next waypoint
7 - Adjust the ND range


ARC mode

ROSE mode

PLAN mode
